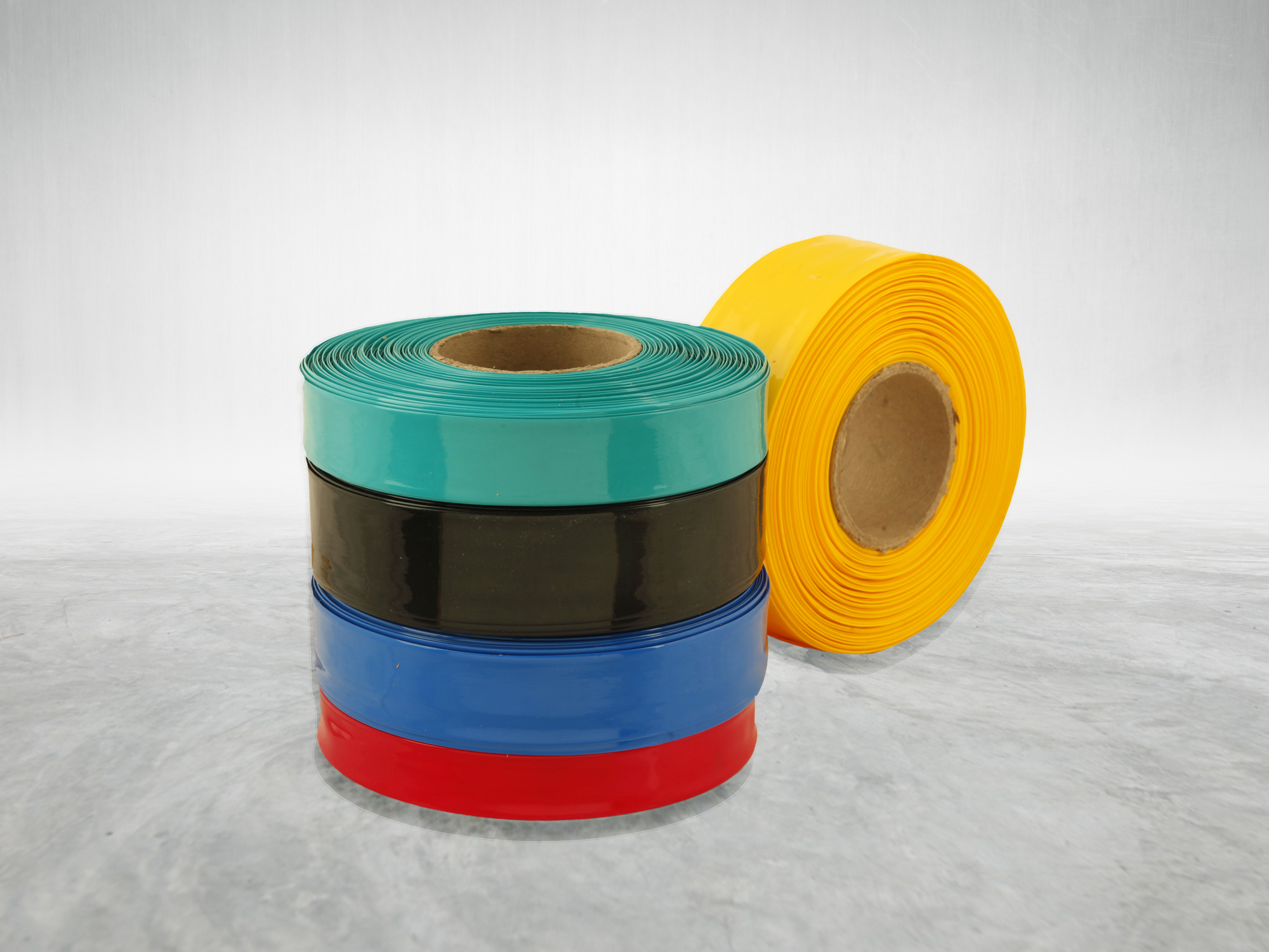

PVC HEAT SHRINKABLE TUBES
Advanced Insulation for Bus Bars
ECI PVC Heat Shrinkable Lay Flat Tubing is manufactured using premium-grade plasticised FR PVC compound, offering superior electrical insulation for bus bars in low-tension systems, control panels, and switchgear systems.
Modern Insulation Technology for Enhanced Protection
Our heat shrinkable bus bar tubes provide a modern, efficient alternative to traditional insulation methods such as taping and painting. Designed to prevent short circuits and chemical resistance degradation, these tubes ensure reliable performance and enhanced safety.
Product Specifications
- Size - Width Range: 15 mm to 240 mm
- Compliance - ROHS-compliant for safe and eco-friendly use
- Thickness - 90 microns to 250 microns
- Customisation - Available in various sizes to meet local and export requirements
Key Benefits
- High-Quality Electrical Insulation. Protects bus bars from electrical faults
- Efficient & Reliable. Provides consistent performance over time
- Chemical Resistance. Shields against corrosive substances
- Easy to Apply. Simple heat-shrink application process
Key Properties of ECI PVC Heat Shrinkable Tubes (Design interestingly)
ECI PVC Heat Shrinkable Tubes are engineered for high performance, safety, and durability, making them ideal for industrial and electrical applications.
Thermal & Electrical Properties
- Working Temperature - 90°C.
- Insulation Resistance - 20 × 10¹⁰ ohms at 500 VDC (Minimum).
- Dielectric Strength - 20KV/mm.
Mechanical Properties
- Tensile Strength - 400 Kg/cm (Minimum)
- Mechanical Strength - Excellent
- Ultimate Elongation - 11%
Heat & Fire Resistance
- Shrinking Temperature - 150°C - 170°C (4-5 minutes for full shrinkage)
- Heat Dissipation - Excellent
- Fire Resistance - Self-extinguishing with no dripping (UL94-V Standard)
Chemical Resistance
- Resistant to - Acids, Alkalis, and Organic Solvents
ECI’s PVC Heat Shrinkable Tubes are designed to meet global standards, ensuring high performance and durability across industrial applications.
