Nylon Self-Adhesive Wire Supports
Secure & Reliable Cable Management
ECI offers high-quality Nylon Self-Adhesive Wire Supports designed for efficient wire bundling and organisation. These supports are available in various tie width specifications and provide a strong, secure hold for wiring in different applications.
Key Features
- Strong Adhesion. Sticks firmly to clean, grease-free surfaces
- Temperature Resistant. Withstands temperatures from -40°C to 120°C
- Optional Screw Mounts. Available for heavy-duty wire support
- Reliable Performance. Ensures secure wire bundling and support
- ROHS Compliant. Safe and environmentally friendly
Easy Application
Simply peel off the backing paper and apply the mount to the desired surface for a quick and hassle-free installation.
Available Variants
- Flat Clip
- Ladder Base Support
- Cable Tie Mount
- Crick Support

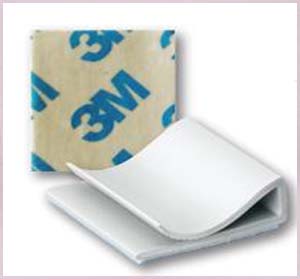

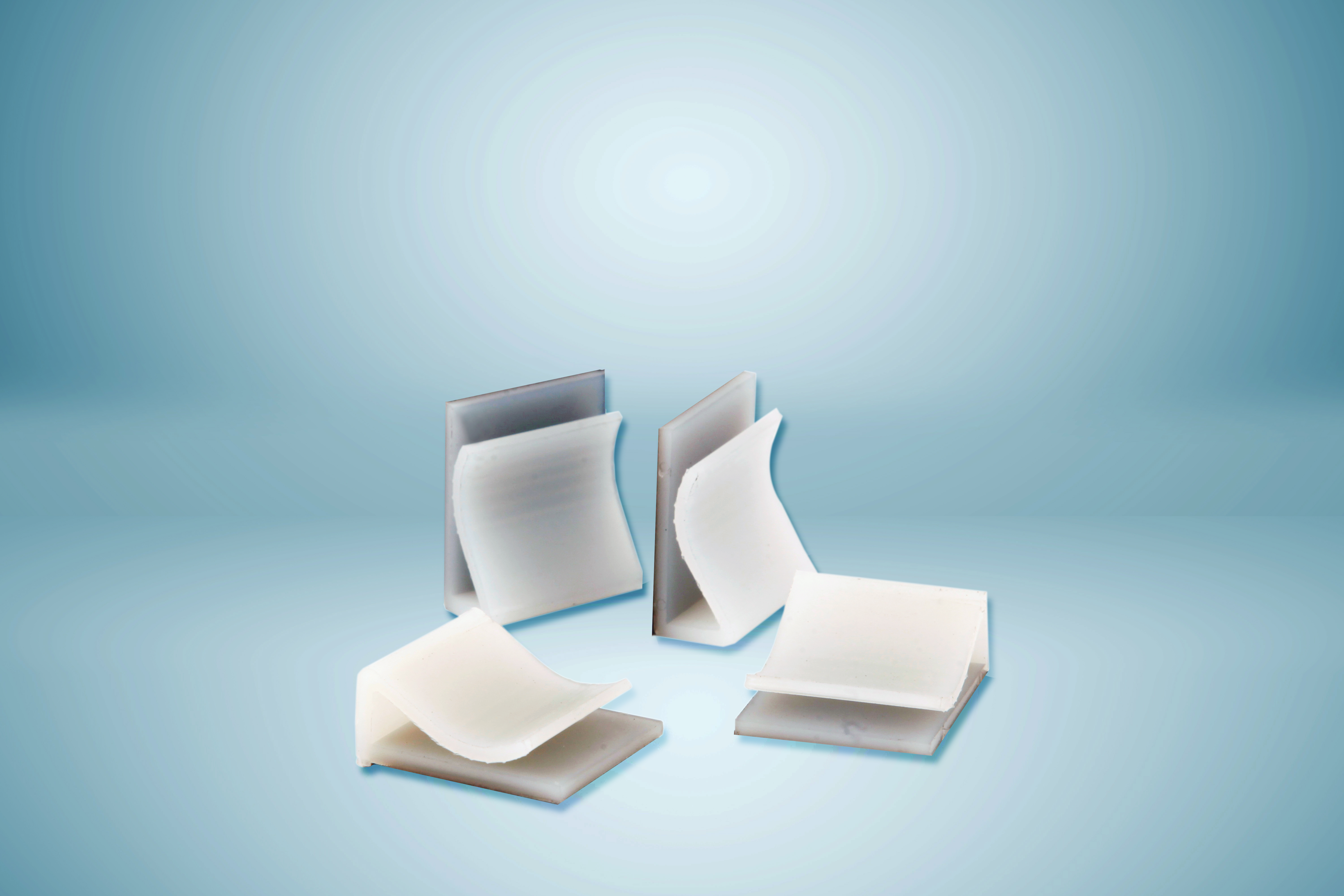

Flat Adhesive Clip Support
Low-profile design ideal for securing single or multiple layers of flat ribbon cables.
| Height (mm) | Lenght (mm) |
|---|---|
| 144 | 29.7 |
| Width (mm) | Depth (mm) |
| 24.7 | 7 |

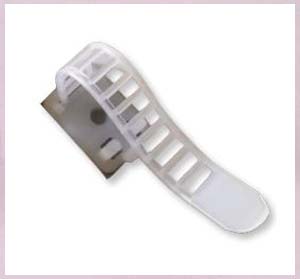

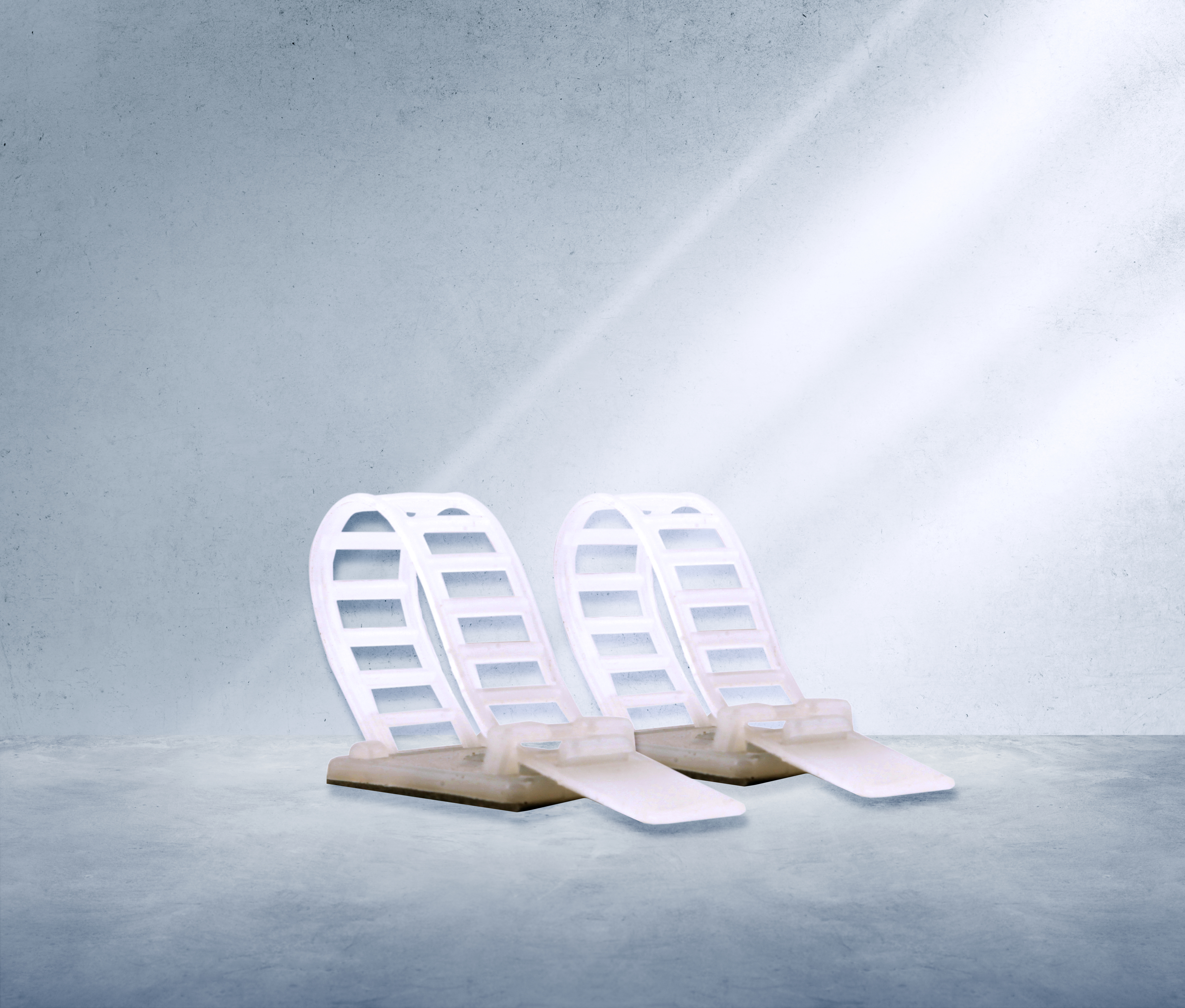

Ladder Support
- Ladder-style fastening allows for easy release and re-fastening.
- Eliminates the need for a cable tie.
- Optional screw hole available for #4 flat head screws for added stability.
| A (mm) | B (mm) | L (mm) | S (mm) |
|---|---|---|---|
| 20.2 | 29.2 | 84 | 12.4 |

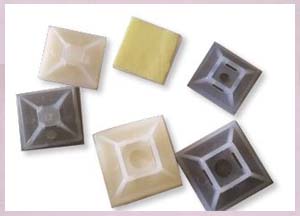

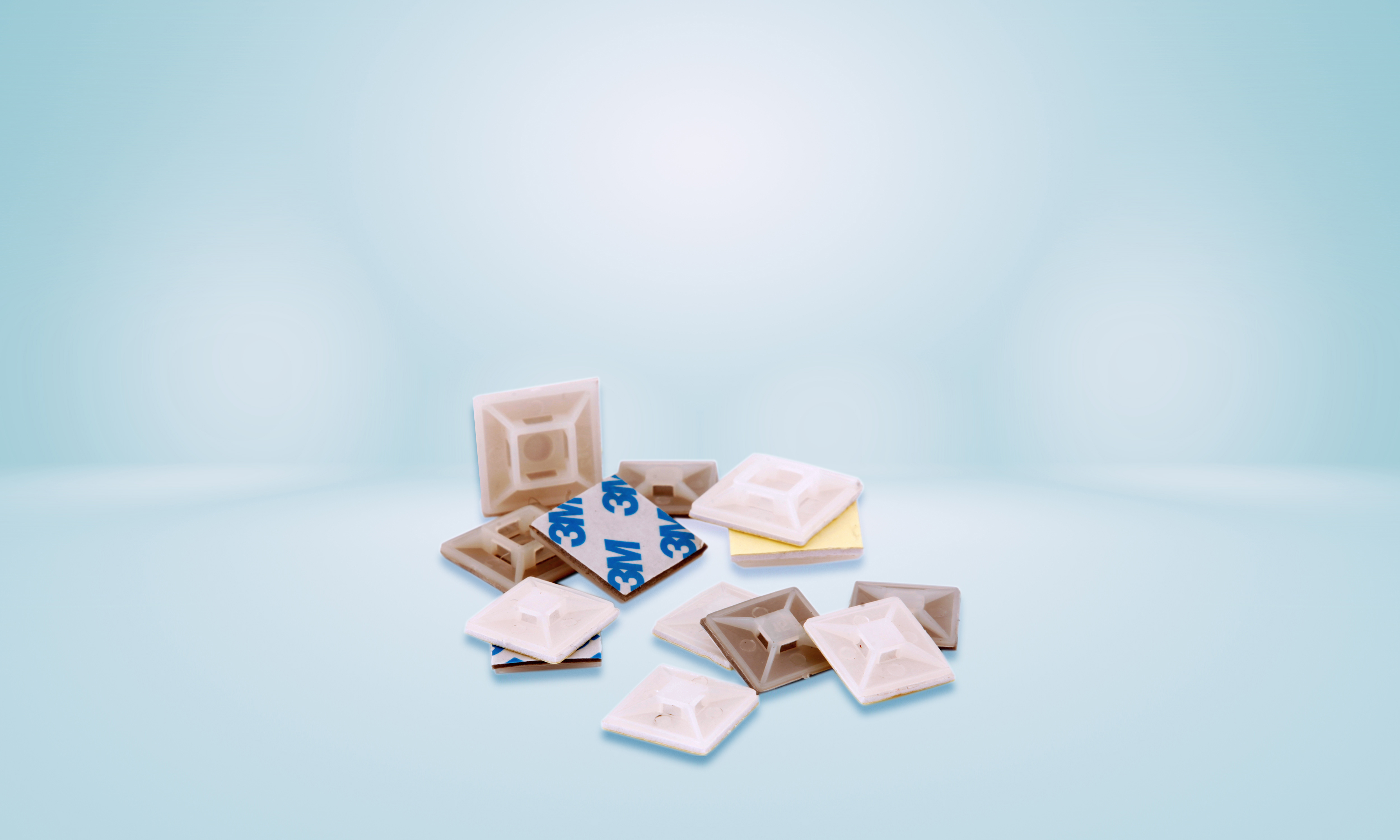

Tie Mount
- Available in 20mm and 25mm sizes.
- Requires a cable tie for securing wires.
- 20mm variant is offered in both open and closed types for different application needs.
| A (mm) | B (mm) | Type | Hole Diametre (mm) | Gap (mm) |
|---|---|---|---|---|
| 20 | 20 | close | -- | 4 |
| 20 | 20 | open | 4.1 | 4 |
| 25 | 25 | open | 6.1 | 6 |

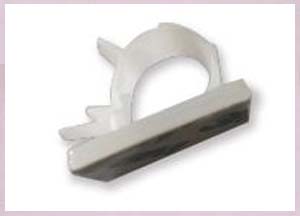

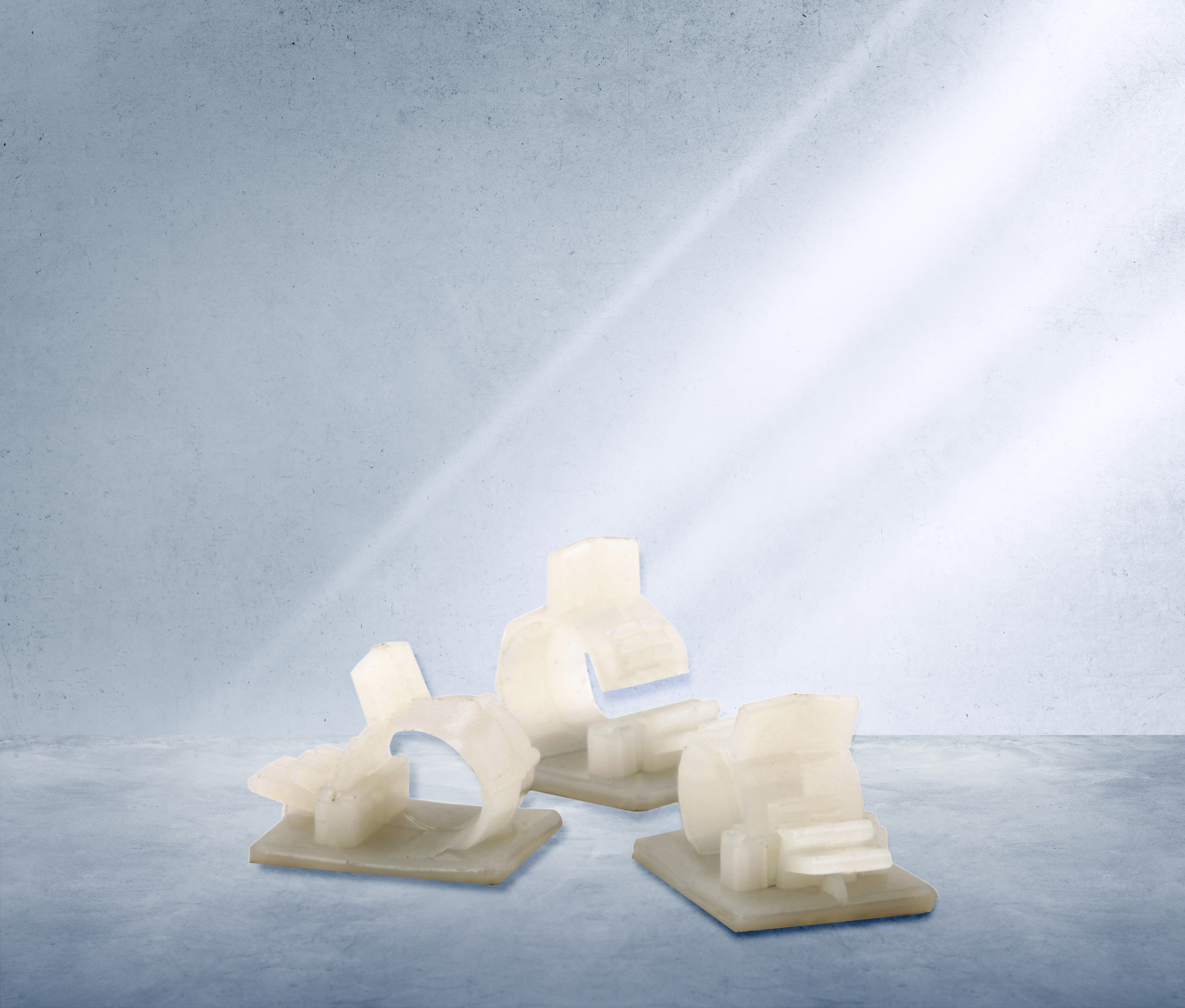

Crick Support
Specifically designed for round cables, providing a firm and secure hold. ECI’s Adhesive Wire Supports are engineered for easy installation, superior durability, and effective cable management across multiple industries.
| W (mm) | 22.5 |
|---|---|
| L (mm) | 29 |
| H (mm) | 22 |
| Round (mm) | 15 |
