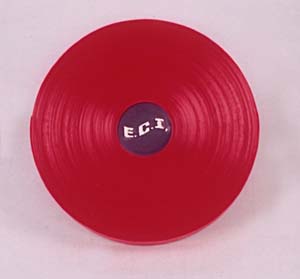

ECI PVC Non—Adhesive Tapes (Heat Sealing Insulating Tapes) are made out of premium high quality FR Grade plasticized PVC compound that has excellent insulation property. Widely used in wiring applications. These non-adhesive tapes are best known in market for their excellent binding strength and flexibility. Available in all electrical code — Red, Yellow, Blue, Black, Green, in different sizes varying according to width (12.5 mm to 2 inches) and thickness (0.13 mm to 0.30 mm).
ECI Offers it clients a wide range of PVC Non—Adhesive Tapes with High Temperature, ROHS Compliance.
Article to be covered should be wrapped smoothly and tightly with ECI Tape. Both the ends should be stuck on the article by heating with a soldering iron or any other hot rod, or by adhesive. Pressure to be applied for sealing.
ECI PVC Heat Shrinkable Lay Flat Tubing are made out of premium high qualilty plasticide FR grade PVC Compound that provides the perfect electrical insulation for Bus bars of low tension systems in control panels & switchgear systems. Bus bar tubes are an excellent latest modern technology for insulation compared to age old conventional method of taping and painting etc. These tubes are used extensively for Bus Bar to avoid short circuits and preventing resistance from chemicals to bur.
Our Product is available from 20 mm width to 170 mm width and in thick- ness ranging from 140 microns to 250 microns for the complete range of Bus Bar and which covers the variations as required by local/export units also.
| Working Temperature | 90°C |
| Dielectric strength | 20 KV /mm |
| Insulation Resistance | 20 x 1010ohms at 500 VDC |
| Tensile Strength | Min 400 Kg/ cm |
| Ultimate Elongation | Min 11% |
| Chemical resistance | Good |
| Fire Resistance(as per UL94-V) | Self Extinguishing with no dripping of materials |
| Shrinking Temperature | 150°C- 170°C for 4-5 mins |
| Mechanical Strength | Excellent |
| Heat Dissipation | Excellent |
